Wireless Compost Temperature Monitoring

Ensure regulatory compliance and avoid tedious, expensive and dangerous manual process.

Our compost monitoring system has a new look!

Click on the button to discover more:

Compost temperature monitoring made simple

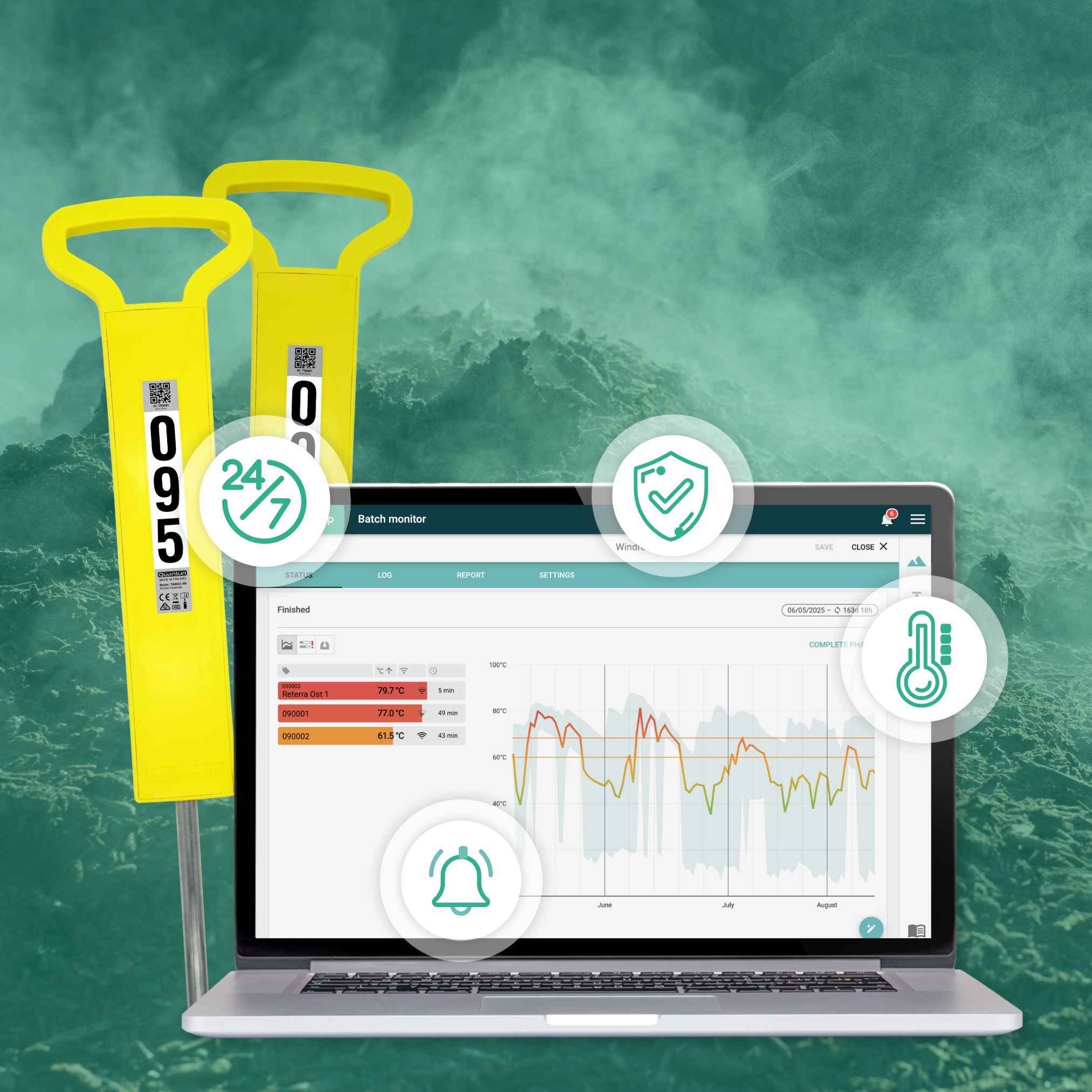

Quanturi wireless monitoring system provides real-time and continuous temperature monitoring to optimize the transformation process of biowaste into compost.

The temperature history gives a complete view of the composting process from fermentation to curing and maturation. The generated reports are a guarantee for sanitary Authorities and customers that compost has been produced in compliance with the regulations in effect.

Quanturi’s connected temperature probes are yellow, easy to spot, extremely robust and are compatible with all installation configurations such as composting platforms and digestate management.

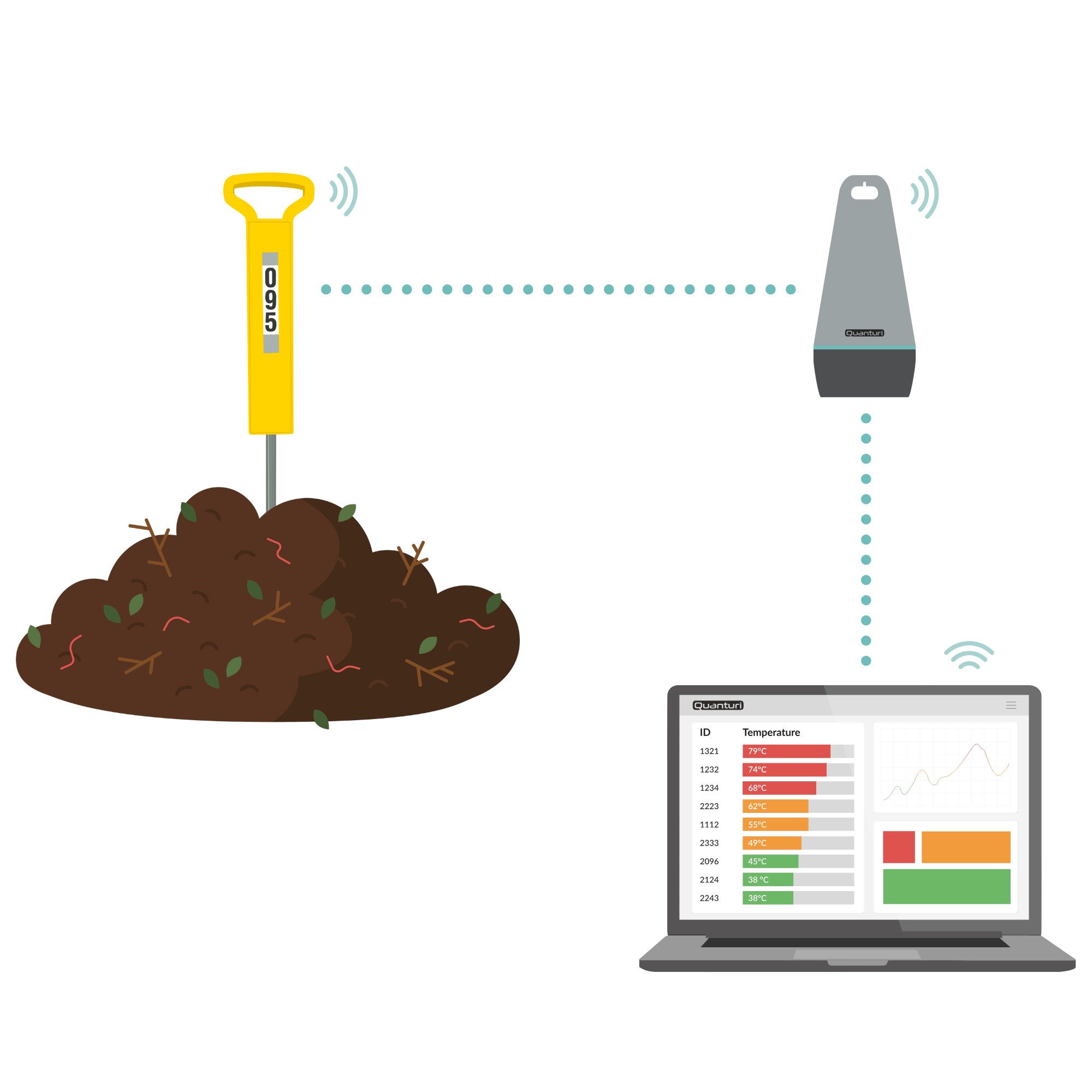

How does the compost monitoring system work?

Compliance

The Quanturi monitoring system avoids the tedious, expensive and imprecise task of manually measuring and documenting temperatures. The online service offers instant temperature visualization and conformity reports in accordance with the relevant sanitary regulations.

Safety

The wireless Quanturi monitoring system reduces risks of work accidents by avoiding contacts with dangerous fumes (e.g. ammoniac, nitrogen). Temperature monitoring is done remotely and continuously and is available online at any time.

Quality

The Quanturi system is compatible with all types of composting (windrows and in-vessels) and all types of inputs (green waste, sludge, digestate ...). Continuous temperature monitoring helps optimize the timing for turning and aerating compost during the decomposition phase and control the curing and maturing phases.

How does the system work?

Tango XN temperature probes

The Quanturi monitoring system contains extremely durable Tango XN temperature probes. The probes are placed in compost and measure wirelessly the temperature of compost. Their spike length is either 100 cm or 200 cm to answer to temperature monitoring criteria established by national Authorities. Also, their bright color is well visible in the compost material. The Tango XN temperature probes have been specifically designed for use in corrosive composting environment.

The mobile base station

The mobile base station collects the measurement data from the wireless Tango XN temperature probes and send them to Quanturi’s secure Cloud. Equipped with an integrated SIM card, the mobile base station receives real-time data from the temperature measurement probes. It processes this information and transmits it to the cloud, where our monitoring application retrieves and analyzes it.

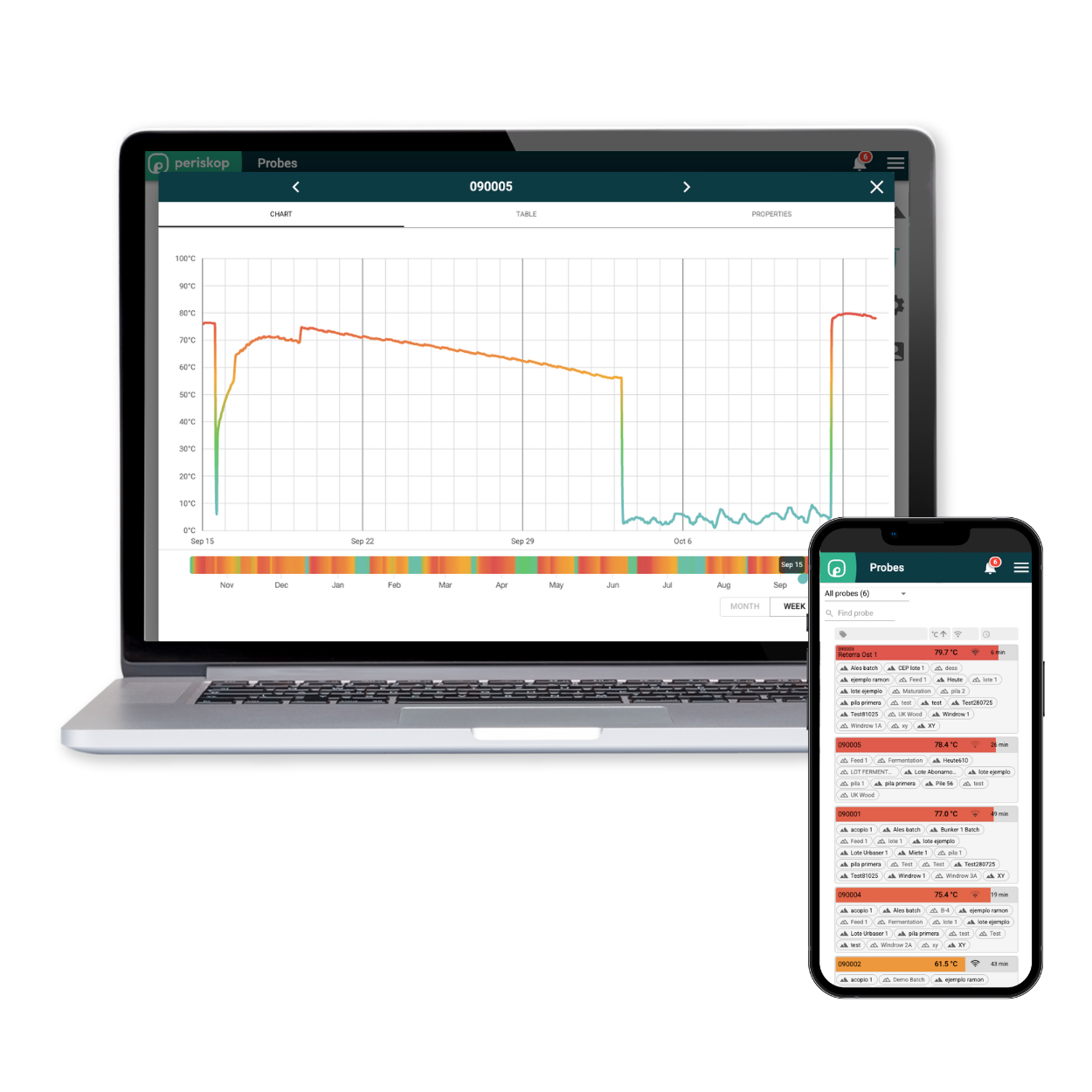

Quanturi.app

Quanturi.app is the service application for controlling the temperature monitoring system. The application is available in web address: https://quanturi.app and can be accessed from any terminal (smartphone, computer, tablet) and at any time.

Compost data plan

The Compost Data service plan gives full control over the temperature monitoring process of compost. The composting site can be virtually mapped to visualize the location and the temperature history of each probe placed in compost. Activity reports are also available for traceability and conformity of compost.

Learn more about compost monitoring system

Compost ventilation control system

The RC12 is a smart controller that optimizes ventilation in composting facilities. It remotely manages each ventilation line for quicker temperature control and lower energy costs throughout the composting process.

The RC12 enhances and simplifies ventilation management in composting

facilities by combining multiple strategies. It ensures faster achievement of

optimal compost quality through precise temperature control and streamlined

automation. Facilities are secured by preventing dangerous temperatures. The

user-friendly interface and data synchronization simplify monitoring, control,

and cost optimization for both existing and new facilities.

Key features of ventilation control

Reduce energy costs

Automate your ventilation strategy based on your

electricity contract's peak and off-peak pricing periods.

Remote access

Control and monitor your system from anywhere using a user-friendly application.

Fire safety

Automatically cool the windrow through continuous ventilation until

a safe temperature is reached in case of a runaway composting process.

Individual fan control

Precisely manage each fan to ensure optimal

oxygenation and rapid temperature target achievement.

Temperature-controlled ventilation

Set temperature targets, define ventilation cycles tailored to the compost

composition, and take into account adverse weather conditions.

Key features of Quanturi compost monitoring system

Real time and continuous temperature monitoring
Automate ventilation control with the help of application
Durable and well visible yellow wireless probes
Increased traceability towards a HACCP approach
Compatibility with all installation configurations
Composting platforms and digestate management
Remote monitoring of several composting platforms
Compliance with hygienisation phases of compost (for example, 55 °C/72h or 70 °C/1h or 65 °C/7d or 55 °C/14d according to the biomass)
Compliance with the Rottegrad test during maturation (temperature less than 40 °C)
Prevention of fire risk caused by self-heating
Prevention of work accidents by minimizing involvement in compost heaps.
